Zero Purge Blower Regenerated Adsorption Dryer

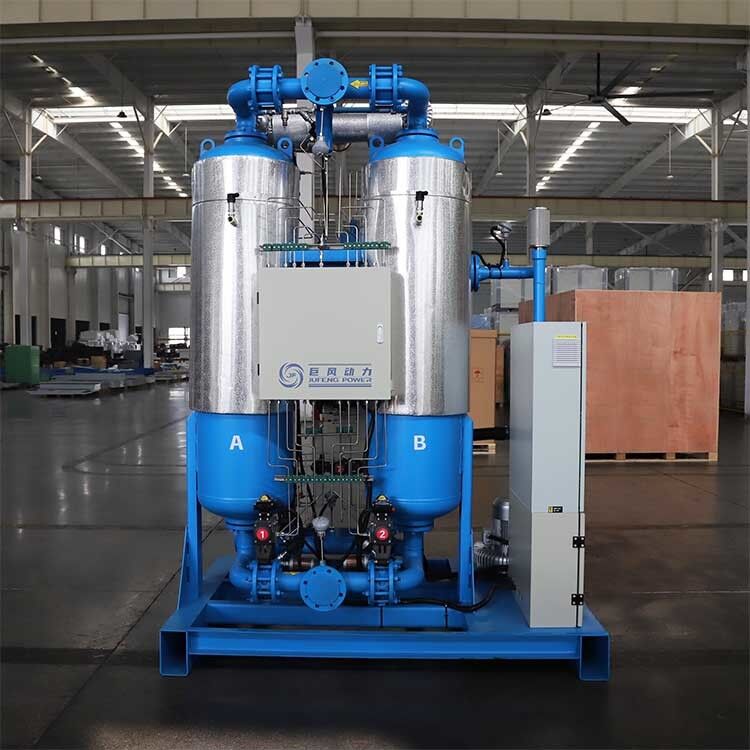

Product photo
Product features
Zero Purge Loss & Energy Saving
Employs an internal cooling cycle and uses ambient air for regeneration, resulting in zero compressed air loss.
Features an energy-saving design with online, real-time dew point monitoring.
Stable & Ultra-Low Dew Point
Utilizes high-quality, high-efficiency desiccant for remarkable stability.
Achieves a consistent pressure dew point of -40°Cwith an option for -70°C available.
Reliable & Durable Construction
Large-diameter towers with controlled flow minimize desiccant abrasion and extend lifespan.
Equipped with double-eccentric, hard-sealed valves (high-temperature resistant).
Uses high-quality blowers and a low-power density electric heater with high-temperature protection for enhanced safety and longevity.
Product parameters
| Model |
Flow capacity m³/min |
Connection | Voltage |
Length mm |
Width mm |
Height mm |
| JF-140F | 14 | DN50 | 380V | 1600 | 1200 | 2550 |
| JF-180F | 18 | DN65 | 380V | 1650 | 1350 | 2550 |
| JF-220F | 22 | DN65 | 380V | 1650 | 1350 | 2600 |
| JF-280F | 28 | DN80 | 380V | 1800 | 1390 | 2600 |
| JF-320F | 32 | DN80 | 380V | 1850 | 1450 | 2650 |
| JF-380F | 38 | DN100 | 380V | 1900 | 1550 | 2650 |
| JF-450F | 45 | DN100 | 380V | 2350 | 1530 | 2700 |
| JF-520F | 52 | DN100 | 380V | 2400 | 1600 | 2750 |
| JF-600F | 60 | DN125 | 380V | 2550 | 1830 | 2850 |
| JF-720F | 72 | DN125 | 380V | 2600 | 1900 | 2900 |
| JF-800F | 80 | DN125 | 380V | 2650 | 2050 | 3050 |
| JF-1000F | 100 | DN150 | 380V | 3250 | 2100 | 3100 |
| JF-1200F | 120 | DN150 | 380V | 3300 | 2050 | 3100 |
| JF-1500F | 150 | DN200 | 380V | 3800 | 2300 | 3450 |
| JF-1800F | 180 | DN200 | 380V | 4100 | 2450 | 3500 |
| JF-2000F | 200 | DN200 | 380V | 4500 | 2550 | 3750 |
